Hollow Shaft
35mm
35mm
6/8/10mm
50-32768ppr
Incremental encoder
IP50
TTL HTL NPN PNP Push-Pull Voltage
No
| Quantity: | |
|---|---|

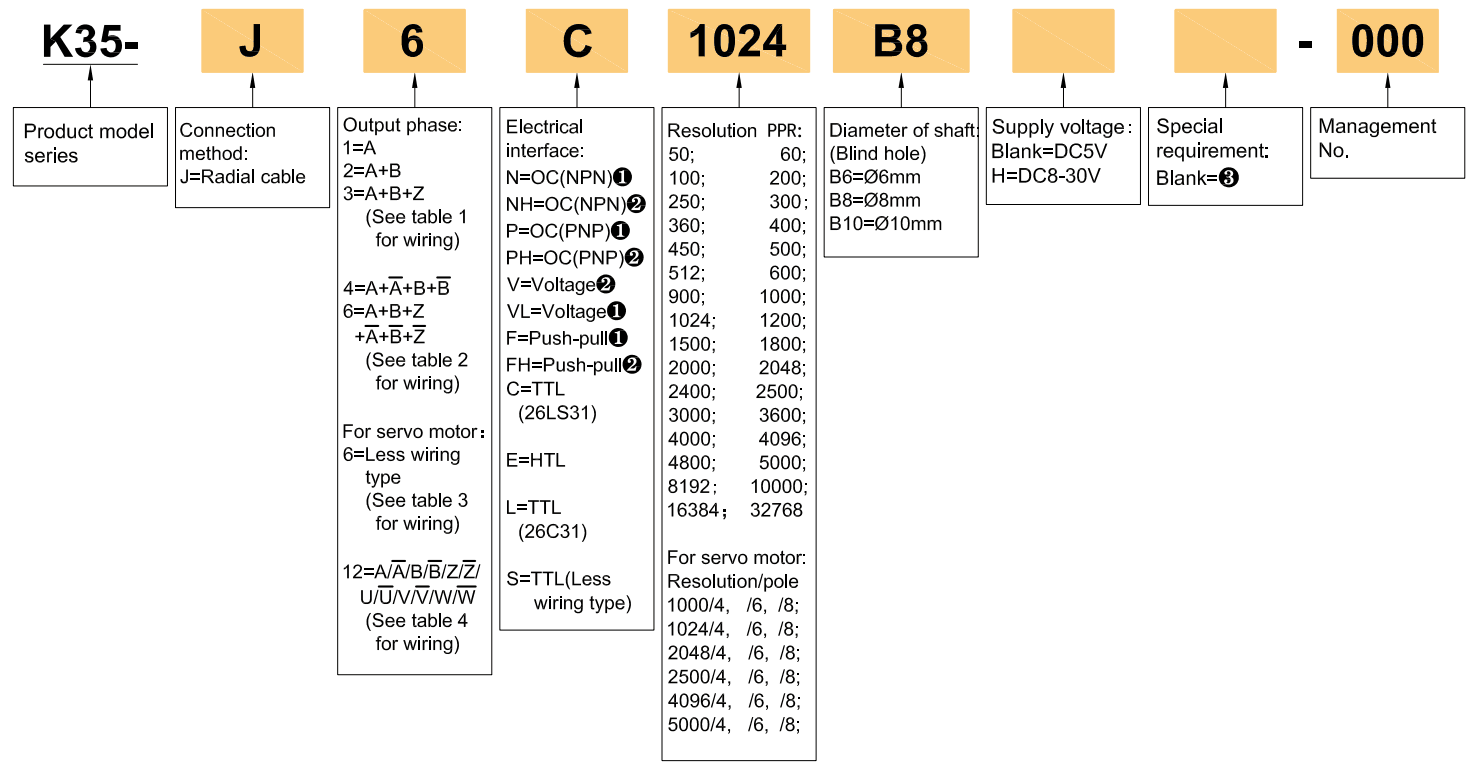

K35
| Items | Basic parameters |
| Brand | HENGXIANG |
| Encoder type | Incremental encoder |
| External diameter | 35mm |
| Thickness | 35mm |
| Installation dimension | 40mm(spring plate 35T40); 29mm(35T29) |
| Hollow shaft type | blind hole |
| Hollow shaft diameter | 6mm,8mm (Depth 14mm);10mm (Depth 16mm) |
| Resolution | 50;60;100;200;250;300;360;400;450;500;512;600;900; 1000;1024;1200;1500;1800;2000;2048;2400;2500;3000; 3600;4000;4096;4800;5000;8192;10000;16384;32768. |
| For UVW signal, resolution/pole: 1000/4;1000/6;1000/8;1024/4;1024/6;1024/8;2048/4; 2048/6;2048/8;2500/4;2500/6;2500/8;4096/4;4096/6; 4096/8;5000/4;5000/6;5000/8 (Other resolution/pole could be customized) | |
| Output phase | Phase A+,B+,Z+,A-,B-,Z-,U+,V+,W+,U-,V-,W- |
| Supply voltage | DC5V & DC8-30V |
| Outlet connection | Radial cable default 500mm, could be lengthened to max 100m |
| Output mode | NPN/PNP(Open Collector Output) |
| Voltage output | |
| Push-pull output | |
| line drive (26LS31) TTL | |
| line drive(DC8-30V) HTL | |
| TTL(DC5V) phase ABZ are back of phase UVW | |
| Protection grade | IP50 |
| Reverse polarity protection | √ |
| Short circuit protection | √ |
| Cable length | 500mm |
| Consumption current | 120mA MAX |
| Top response frenquency | 500KHZ |
| Allowable ripple | ≤3%rms |
| Load Voltage | ≤DC30V |
| Insulation strength | AC500V 60s |
| Insulation resistance | 10MΩ |
| GND | not connect to encoder |
| Mark to Space ratio | 45% to 55% |
| starting torque | less than 5.9x 10-3 N.m |
| Intertia moment | less than 1x 10-6kg.m2 |
| Shaft load | Radial 30N; Axial 20N |
| Top REV | 5000RPM |
| Bearing life | 1.5x109 revs at rated load(100000hrs at 2500RPM) |
| Environmental temperature | Operating:-20 ～+85°；storage:-20 ～+90° |
| Enviromental humidity | Operating and storage: 35-85%RH(noncondensing) |
| Vibration(endure) | Amplitude 0.75mm,5-55Hz,2 hours for X,Y,Z direction individually |
| Sock(endure) | 490m/s2 ,11 ms three times for X,Y,Z direction individually |
| Shell Material | Aluminium alloy |
| Certification | CE |
| package | Carton box |
| Net weight | About 100g |
