Hollow Shaft
35mm
17.5mm
6/8mm
1000-5000ppr
Incremental encoder
IP40 None
TTL HTL NPN PNP Push-Pull Voltage
No
| Quantity: | |
|---|---|

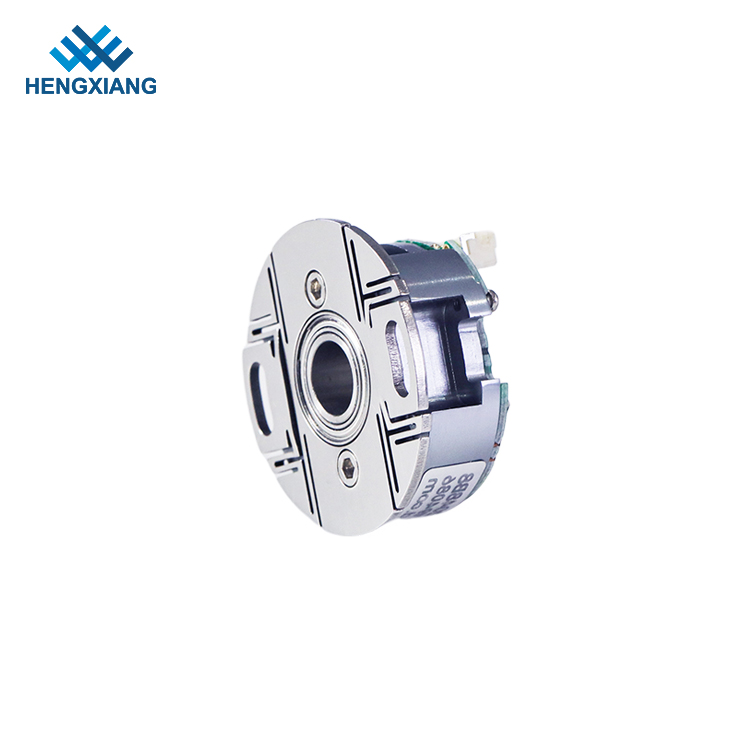

KB35
| Items | Basic parameters |
| Brand | Hengxiang |
| Encoder type | Incremental encoder |
| External diameter | 35mm |
| Thickness | 17mm |
| Installation dimension | 29mm |
| Hollow shaft type | through hole |
| Hollow shaft diameter | 6mm/8mm |
| Resolution | 1000;2000;2500;4096;1024;2048;4000;5000 |
| 1024/6;1024/8;1024/16;2048/6;2048/8;2048/16 ;2500/6,2500/8,2500/16,5000/6,5000/8,5000/16,10000/6,10000/8,10000/16 | |
| Output phase | A+A-+B+B-+Z+Z-+U+U-+V+V-+W+W- |
| Supply voltage | DC5V;DC8-30V |
| Outlet type | Radial cable |
| Radial socket | |
| Output mode | NPN/PNP(Open Collector Output) |
| Voltage output | |
| Push-pull output | |
| line drive (DC5V, 26LS31/26C31) TTL | |
| line drive(DC8-30V) HTL | |
| Top response frenquency | 800KHz |
| Rise/ Fall time | Less than 1us(cable length:2m) |
| starting torque | Less than 5.9×10-3N·m |
| Intertia moment | Less than 1.5×10-6kg·m2 |
| Shaft load | Radial 30N; Axial 10N |
| GND | not connect to encoder |
| Environmental temperature | Operating: -25~+90℃; Storage:-25~+100℃ |
| Enviromental humidity | Operating and storage: 35~85%RH(noncondensing) |
| Slew speed | ≤6000 rpm |
| Shell Material | Aluminium alloy |
| Certification | CE |
| package | Carton box |
| Net weight | about 60g |
